Spun Pile Types and Specifications

This reference guide covers what a spun pile is, how spun piles are classified, the standard sizes and lengths on offer, dimensional tolerances, handling requirements and strength testing, all with reference to MS 1314 Part-4.

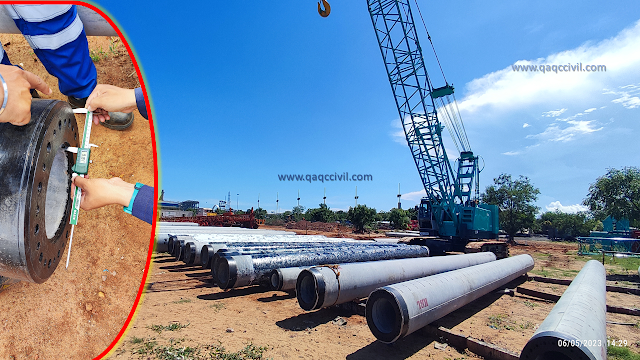

Spun pile type and specification overview
Spun pile overview

What Is a Spun Pile?

A spun pile is a precast concrete pile made from prestressed concrete to boost its load-carrying capacity. It is produced by a centrifugal spinning process running at roughly 20g to 30g, which densifies the concrete and makes it stronger than square piles. The finished concrete has low permeability, helping to shield the pile from air and chloride exposure and to prevent rusting. That makes spun piles a good fit for demanding conditions such as river, marine or high-chloride soils.

Reference standard: MS 1314 Part-4.

Classification of Spun Piles

Spun piles fall into three groups: Class A, Class B and Class C. Every class calls for a minimum 28-day concrete strength of 60 N/mm² and a minimum cement content of 420 kg/m³, and all are intended for hammer driving. What separates the classes is their minimum effective prestress.

  • Class A — minimum effective prestress 4.0 N/mm²
  • Class B — minimum effective prestress 5.0 N/mm²
  • Class C — minimum effective prestress 7.0 N/mm²
Spun pile classification reference table
Pile class reference

Standard Sizes and Lengths of Spun Piles

The standard size and length table gives outside diameters of 250 mm, 300 mm, 350 mm and 400 mm, along with nominal wall thicknesses and the pile lengths available for each diameter and class. Depending on diameter and class, piles come in lengths of 6 m, 9 m, 12 m, 15 m and 18 m.

Standard spun pile size and length table
Standard sizes and lengths
Spun pile dimensions presentation graphic
Dimensions at a glance

Spun Pile Dimensional Tolerances

The permitted deviations for spun piles are summarised below.

  • Pile length up to 12 m: ±25 mm
  • Pile length exceeding 12 m: ±0.3% of cast length
  • Cross-sectional nominal external diameter or size: −3 mm to +6 mm
  • Wall thickness of hollow section: −3 mm to +10 mm
  • Straightness: no face may deviate more than 6 mm from a 3 m straight edge laid on that face; the centroid of any cross-section may not deviate more than 12 mm from the straight line joining the centroids of the pile faces
Spun pile dimensional tolerance table
Tolerance limits

Handling of Spun Piles

A pile segment must not be lifted from its mould until it reaches a minimum cube strength of 30 N/mm². Lifting line markings sit at 0.2 times the pile length measured from each end, and they are needed only on piles longer than 9 m to help with handling.

Spun pile lifting and handling points
Lifting point locations

Spun Pile Strength Testing

Strength verification involves the following checks:

  • 28-day cube strength in accordance with IS-516
  • Bending strength of the pile in accordance with MS 1314 Part 2, covering pile body strength and pile joint strength
Spun pile strength test illustration
Strength testing

Frequently Asked Questions

What is a spun pile?
A spun pile is a precast concrete pile made from prestressed concrete and produced by a centrifugal spinning process, which raises concrete strength compared with square piles. Its low permeability helps protect it from air and chloride attack.
Which standard governs spun pile type and specification?
This page refers to MS 1314 Part-4 for the classification, concrete strength, prestress, cement content and driving requirements of spun piles.
What are the classes of spun piles?
Spun piles are classified as Class A, Class B and Class C. All three share a minimum 28-day concrete strength of 60 N/mm² and a minimum cement content of 420 kg/m³ and are listed for hammer driving; they differ in minimum effective prestress at 4.0, 5.0 and 7.0 N/mm² respectively.
What sizes and lengths are available for spun piles?
The standard size and length table gives outside diameters of 250 mm, 300 mm, 350 mm and 400 mm, with nominal thicknesses and available pile lengths of 6 m, 9 m, 12 m, 15 m and 18 m depending on diameter and class.
Where are spun piles suitable for use?
Since the spun concrete is less permeable and resists chloride ingress, spun piles are suited to special conditions such as river, marine or high-chloride soil environments.
